Parker SD125 Track Incline Screener

The Parker SD125 Tracked Incline Screener utilise high efficiency inclined vibrating screen boxes; offering exceptional output capacity and accurate separation for screening either sand, gravel, aggregate or recycled/demolition materials. Robust tracks ensure excellent on site positioning and mobility together with operational stability. Variable speed forward and side product conveyors are hydraulically operated and easily stowed for transport.

Parker SD125 Track Incline Screener

Where high capacities, reliability and excellent maneuverability are required, Parker tracked incline screeners will perform for you.

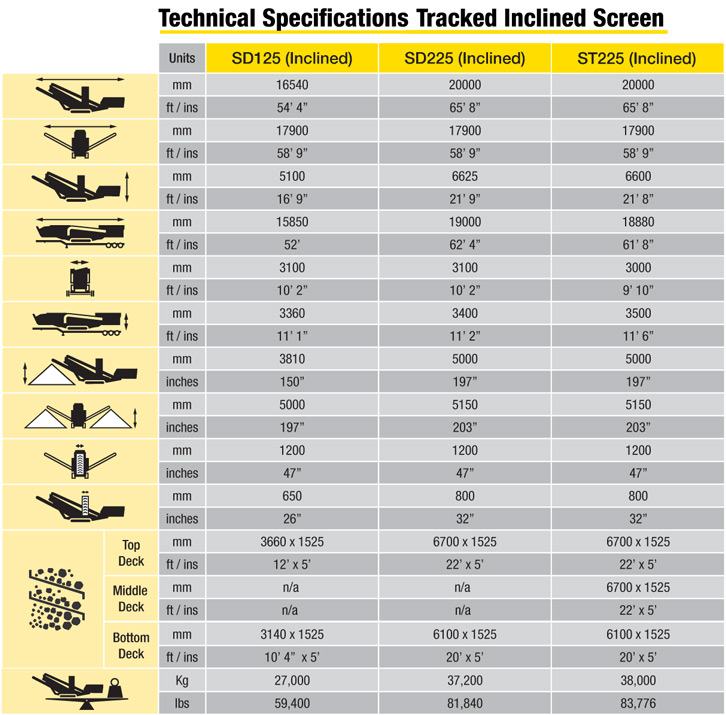

Click Here for Technical Specifications Chart

Parker SD125 Track Incline Screener Brochure

Equipment Specifications

  • 12ft x 5ft heavy duty screen box
  • 12yrd Feed Hopper with Standard Remote Tipping Grid
  • 4in Grizzley Bars for heavy duty material
  • 42in wide feeder/hopper belt
  • 42in wide screen feed conveyor with adjustable belt cleaner
  • Full Galvanised Access Walkways
  • 47in wide fines conveyor with 13ft discharge height
  • 26in wide side product conveyors with cheveron belting - 16ft 9in discharge
  • Cat C4.4 (Tier III) Turbo Charged Water Cooled Engine - 100hp (77kW) @2200rpm

Benefits and Features

  • Robust and durable screens featuring rapid setup times
  • High volume, high efficiency product screening
  • Versatile in a wide range of applications
  • Easily accessible maintenance and service points
  • Simple hydraulic circuits
  • Efficient Caterpillar powerpack designed for low operating cost
  • Global aftersales service, support and spare parts supply


  • Crusher Feed Chute
  • 2 Deck Vibrating Live Head
  • Radio Remote Control for Tracks
  • Roll-in Bogie System
  • Single Shaft Shredder
  • Overbelt Magnet
  • 6in Grizzley Bars
  • Dust Suppression System

Photos - Click to Enlarge

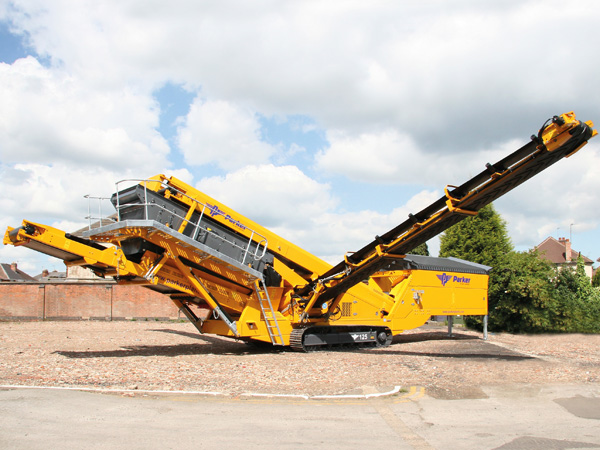

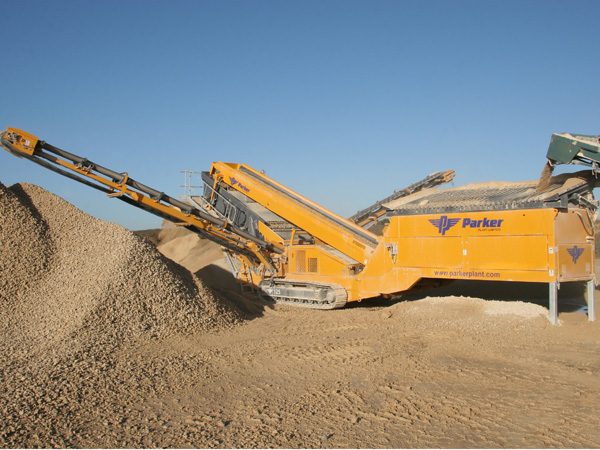

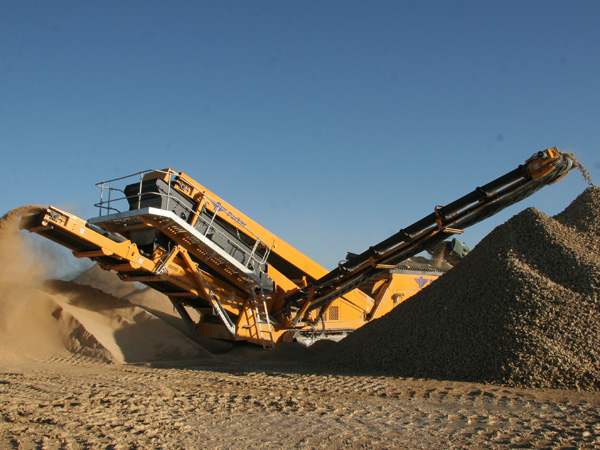

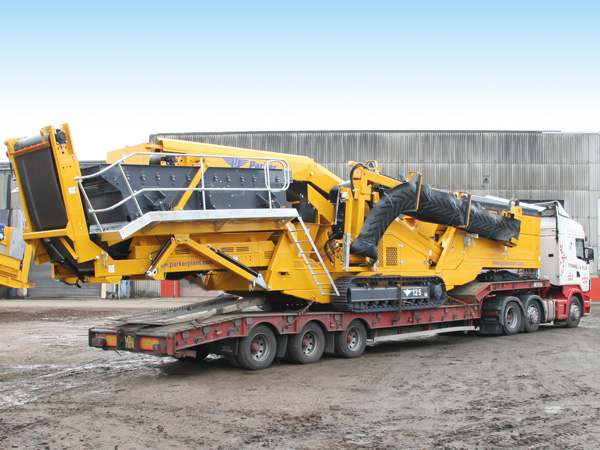

Parker SD125 Incline Screener  Parker SD125 Incline Screener

Parker SD125 Incline Screener  Parker SD125 Incline Screener
